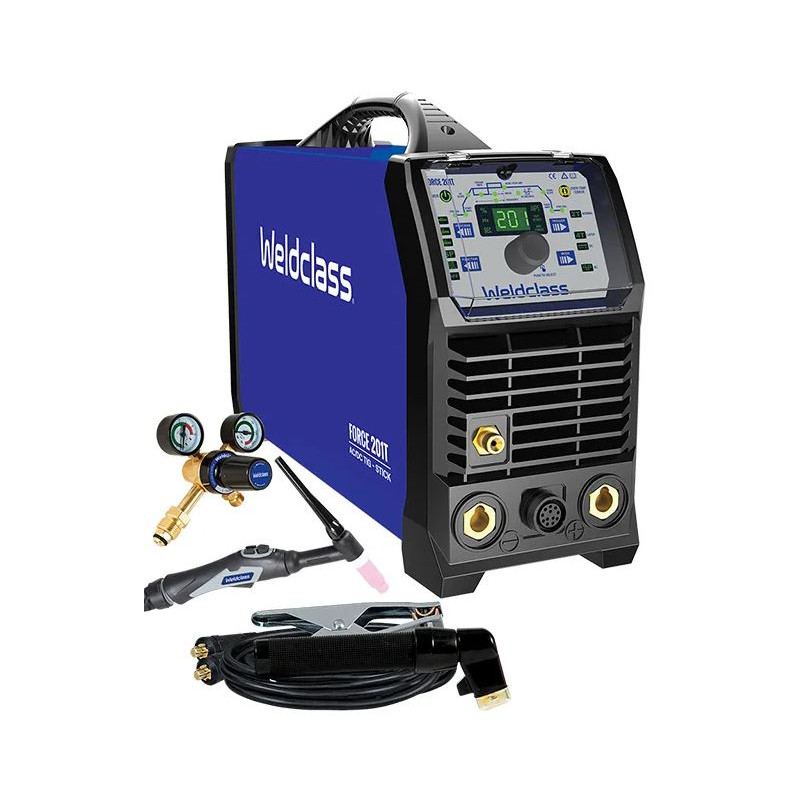

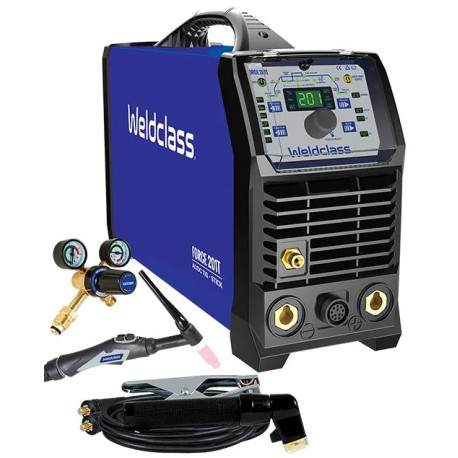

WF-06172

FUNCTIONS

• TIG (AC/DC)
• Stick / MMA

AT A GLANCE:

• 200A max output (AC) @ 30% duty cycle
• Weld up to 3.2mm (max tungsten size)
• Fitted with 15A 240V plug
• Professional TIG welding of Aluminium, Mild Steel, Stainless & more


KEY FEATURES:

• Market leading 7-year warranty*
• Weighs only 8kg - compact, robust & lightweight
• LCD Digital Controls
• IP23 Protection - superior resistance to moisture & particles
• Generator Compatible - min 8kva, ideal 10kva+
• Stressed-Tested - to 440V & over-specified componentry for reliability
• Optional Foot Control (part no WC-06236)

FUNCTIONS:

• HF or Lift Arc Ignition
• Pulse Frequency Adjustment 0.2 – 200Hz
• Pulse Width Adjustment
• Slope Up/Down Adjustments 0-10s
• Pre Gas Adjustment 0-2s
• Post-Gas Adjustment 0-10s
• AC Balance Adjustment: -5 (25% / max penetration) to +5 (50% / max cleaning)
• AC Frequency 50Hz


INCLUDES:

• TIG Torch #26 Flexi 8m (remote control)
• Earth Lead 4m
• Stick Lead 4m
• Gas Regulator
• Shoulder Strap
• Cable Strap
• Long Power Input Lead 3m
• Parts Kit & Tungstens - 1.6, 2.4, 3.2mm
